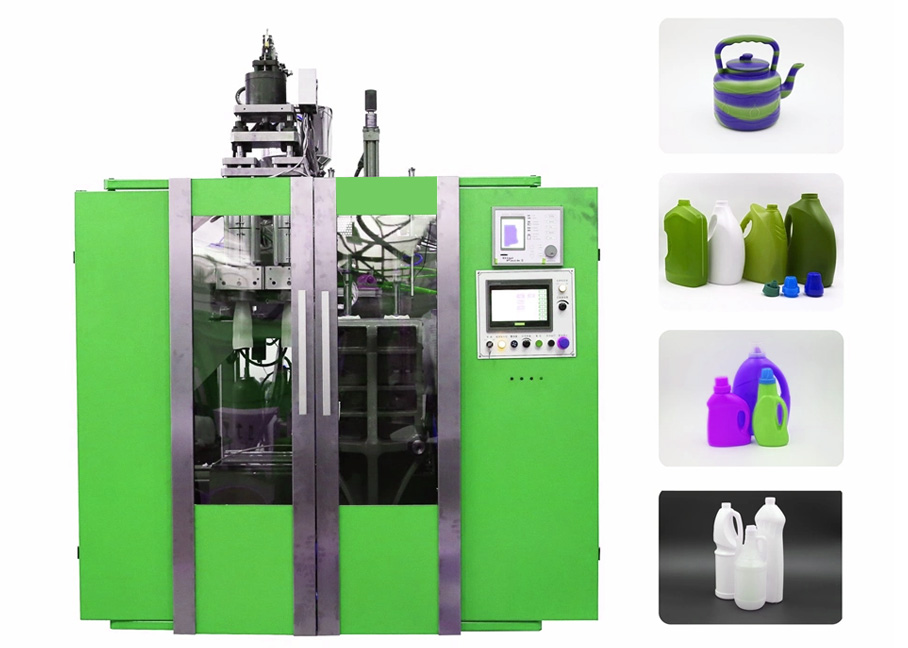

This is our basic series machine.It is single station.This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
| Model | Units | 5L |
| Specification | ||
| Station | Single/Double | Single |
| Max.product volume | L | 5 |
| Dry cycle | pc/h | 700 |
| Central distance of double head | mm | 160,180 |
| Output of HDPE | kg/h | 60 |
| Weight of machine | kg | 4000 |
| Size of machine(L*W*H) | m | 3.43*1.77*2.58 |
| Die head | ||
| Max.die diameter(single head) | mm | 145 |
| Die head heating zone(single head) | - | 4 |
| Die head heating(single head) | kw | 7.6 |
| Max.die diameter(double head) | mm | 108 |
| Die head heating zone(double head) | - | 5 |
| Die head heating power(double head) | kw | 10.7 |
| Clamping Unit | ||
| Platen distance | mm | 148~508 |
| Mold moving stroke | mm | 380 |
| Clamping force | kn | 70 |
| Extruder Unit | ||
| Screw diametre | mm | 60 |
| Screw length/diametre ratio | - | 25 |
| Screw heating power | kw | 11.2 |
| No.of heating zone(screw) | - | 3 |
| Power Unit | ||
| Oil pump motor power | kw | 11 |
| Screw motor power | kw | 15 |
| Total power | kw | 44.8 |
| Remarks | ||
| Air consumption | m³/min | 0.4 |
| Blow pressure | Map | 0.6 |
| Cooling water pressure | Map | 0.3 |
| Water consumption | L/min | 50 |
| Max size of mold(W*H) | mm | 370*390 |
