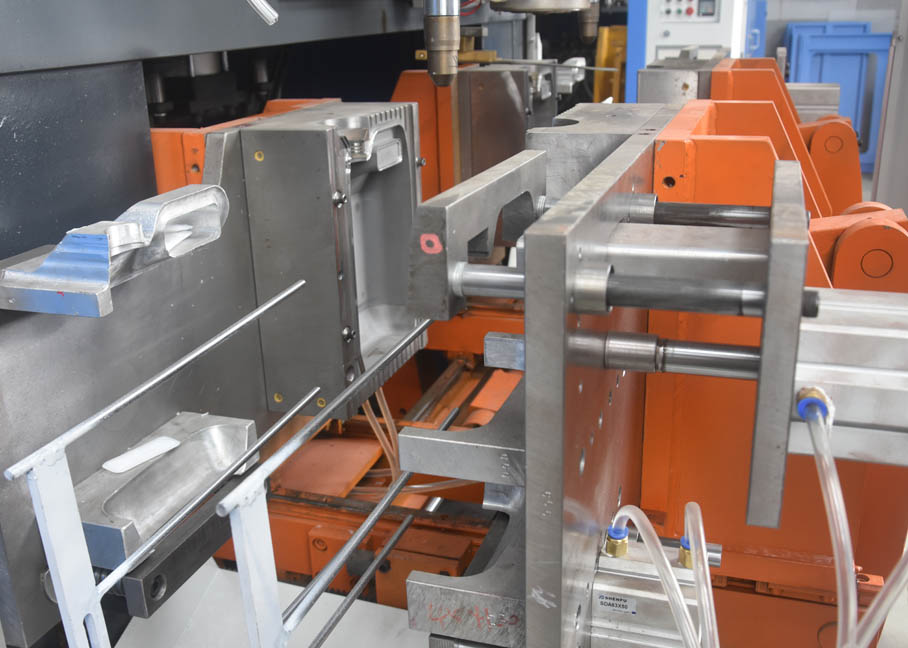

This is our basic series machine.It is single station.This machine is suitable for the small bottles.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
The above specifications and design are subject to change without prior notice.
| Model | Units | SX-2L |
| Specification | ||
| Station | Single/Double | Single |
| Max.product volume | L | 2 |
| Dry cycle | pc/h | 900 |
| Central distance of double head | mm | 130 |
| Output of HDPE | kg/h | 50 |
| Weight of machine | kg | 3300 |
| Size of machine(L*W*H) | m | 3*1.55*2.35 |
| Die head | ||
| Max.die diameter(single head) | mm | 108 |
| Die head heating zone(single head) | - | 3 |
| Die head heating(single head) | kw | 5.2 |
| Max.die diameter(double head) | mm | 72 |
| Die head heating zone(double head) | - | 5 |
| Die head heating power(double head) | kw | 7 |
| Clamping Unit | ||
| Platen distance | mm | 138~368 |
| Mold moving stroke | mm | 320 |
| Clamping force | kn | 44 |
| Extruder Unit | ||
| Screw diametre | mm | 50 |
| Screw length/diametre ratio | - | 25 |
| Screw heating power | kw | 6.8 |
| No.of heating zone(screw) | - | 3 |
| Power Unit | ||
| Oil pump motor power | kw | 7.5 |
| Screw motor power | kw | 11 |
| Total power | kw | 30.5 |
| Remarks | ||
| Air consumption | m³/min | 0.4 |
| Blow pressure | Map | 0.6 |
| Cooling water pressure | Map | 0.3 |
| Water consumption | L/min | 35 |
| Max size of mold(W*H) | mm | 310*320 |
