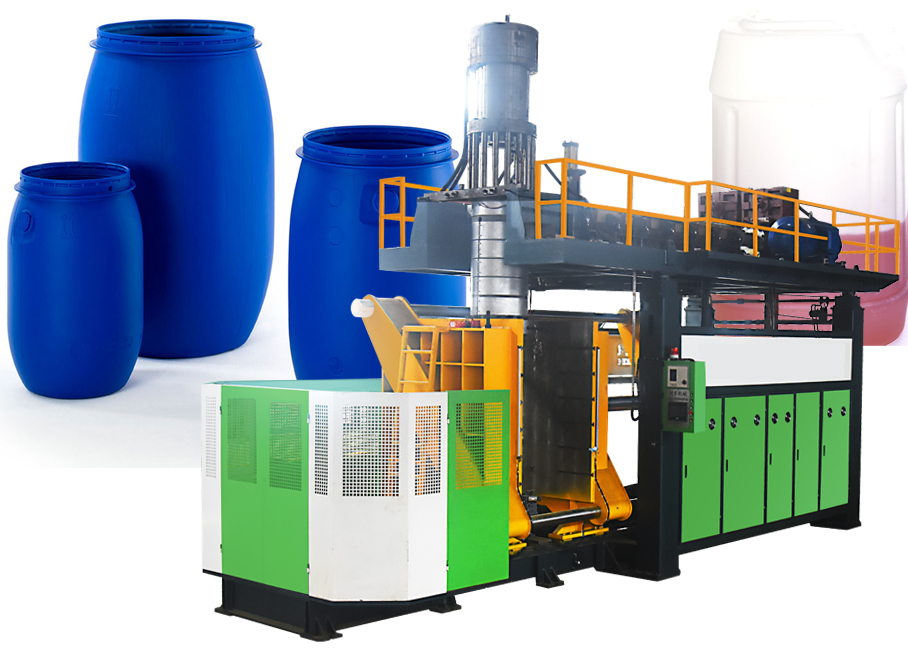

This machine can help you do the best. Oil tank/drum with a capacity of 160 liters. It is widely used in the manufacture of oil tank trucks of 80L~160L. The die head of this machine tool adopts 18L accumulator type, 100-point parison controller, bottom blowing device and reclaiming device. The maximum weight of the plastic tank can be 7.5~8.5KGS. You can choose a servo motor in the hydraulic system, and there are fewer tie rods on the clamping plate. We can make the appropriate configuration according to your new project requirements.

Electric control system: Japan Mitsubishi PLC computer plus man-machine interface (Chinese or English) control, color touch operation, modular temperature control. All functions such as process setting, change, retrieval, monitoring, fault diagnosis, etc. are realized on the touch screen, with no point contact working principle, and durable electrical components. The standard electric control cabinet makes the operating environment of the components stable and prolongs the service life of the equipment.

Hydraulic system: Proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable and reliable.

Plastic industry system: high-efficiency plasticizing and mixing screw to ensure full and uniform plasticization of plastics.

Speed control system: frequency conversion speed control + alloy steel hard tooth surface gear box, stable speed control, energy saving, low noise and durable.

Mold opening and closing mechanism: The mold opening, closing and clamping adopt linear guide rails, and the precision reaches the micron level. The full-stroke positioning of the mold opening and closing is high in accuracy, easy, energy-saving, and has a strong load-bearing capacity and does not deform. Three tie rods, single cylinder, two-way synchronous mold opening and closing center mold clamping mechanism, good product stability.

Adopting the wall thickness control function: the change in the blanks will bring about the difference in the upper and lower widths due to the vertical elongation, and effectively improve the uniformity of the wall thickness of the products.

Die head: are made of 38CrMoAIA, 42CrMoV, 35CrMo and other high-quality materials, which are made by precision machining and heat treatment.

Save effort when changing molds: the die head can be moved up and down at the same time as the above machine, and can be moved backward and forward (hydraulic control), which is convenient for installing various molds to leave space. least.

Low energy consumption: Servo motors should be used to save energy about 30%-50%.
