Extrusion Blow Molding Machine Application

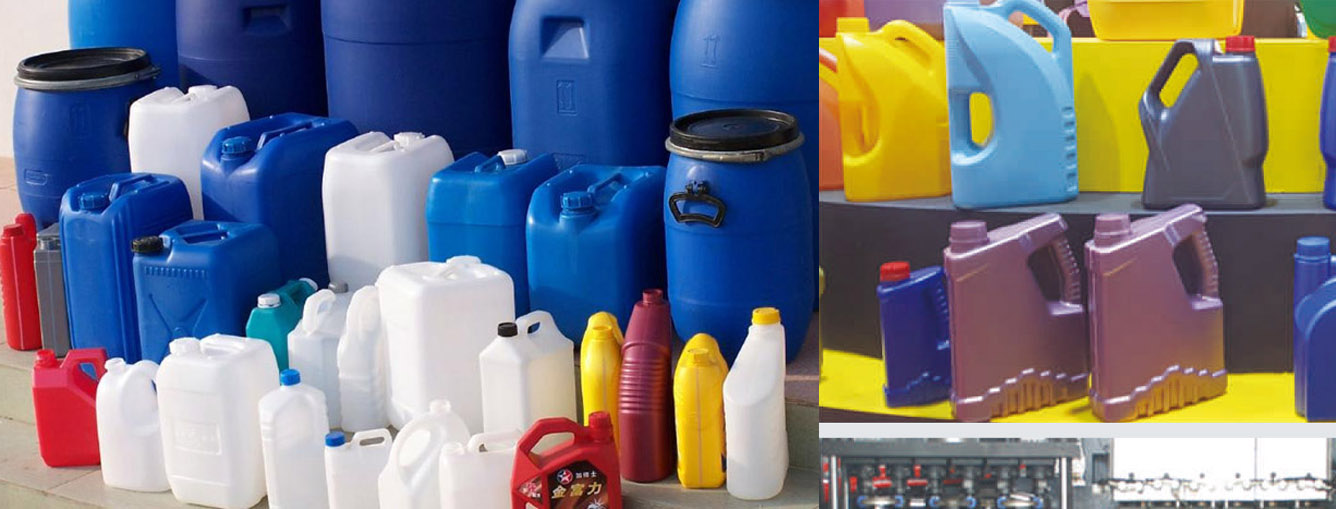

HDPE Bottle Making Machine 70D is double station blow moulding machine for 5L as maximum, specially used for 50ml to 5L plastic bottles, jerry cans, small containers and jars. With single head it's used for 2~5L bottles, double head is used for 1~2L bottles, triple head used for 500ml~1L bottles, four head for 0~500ml small products. SRB70D is popular due to its high quality and price rate, stable working performance, easy operation and maintenance.

Features & Advantages

1. Reasonable structure design and solid frame manufacturing to insure running stability.

2. Good head material runner deisgn and precision metal process for changing color easily.

3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.

4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.

5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.

1. maximum blow volume is 2L, PE, PP, etc. can be used.
   2. Different screws and die mandrels, channel styles will be designed based on the specifics of different plastics;
   4, convenience to refueling, change color, purge, disassembly and cleaning with those die head. Symmetry part of the wall thickness is very uniform;
   5, Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
   6, Clamping mold is achieved with scissor toggle mechanism, mold carriage is with high-precision ball linear guide, every part of template bears the similar clamping force,
   7, Extruder platform can be lifted, easy to adjust the parison length
   8. can blow vertically and even blow from certain angle
   8, Design is based at CE safety standard, concerning about user safety;
   9, Inverter is from France Schneider, adjust the screw speed, saving energy;
   10, automatic lubrication system, automatic alarm function, more concerned about the user;
   11, Equipped with high temperature alarm function.
